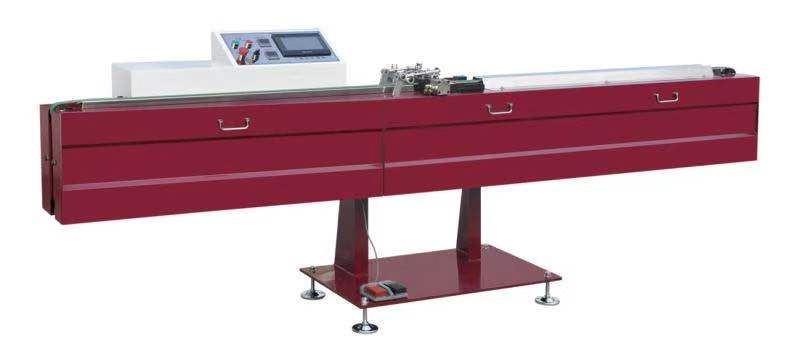

在工業制造領域，精密涂膠工藝的穩定性和效率直接決定了產品質量與生產成本的控制水平，而全自動丁基膠涂布機的創新設計恰恰通過融合多維技術體系，重新定義了高端密封材料涂覆作業的行業標準。該設備的核心架構以自動化控制系統為中樞神經，構建了一個從原料供給、動態溫控到膠層厚度的閉環式智能管理網絡，其搭載的先進氣液增壓系統突破了傳統單一介質壓力調節的局限性，通過氣液耦合的動態平衡算法，在0.1秒級響應速度內實現壓力波動的實時補償，即便面對高粘度丁基膠的復雜流變特性，仍能確保膠體在管道中以層流狀態均勻傳輸，徹底消除因壓力突變導致的涂膠斷點或局部堆積現象。

　　In the field of industrial manufacturing, the stability and efficiency of precision coating technology directly determine the level of product quality and production cost control. The innovative design of the fully automatic butyl rubber coating machine precisely redefines the industry standard for high-end sealing material coating operations by integrating multidimensional technology systems. The core architecture of this device is based on an automation control system as the central nervous system, which constructs a closed-loop intelligent management network from raw material supply, dynamic temperature control to adhesive layer thickness. Its advanced gas-liquid pressurization system breaks through the limitations of traditional single medium pressure regulation. Through the dynamic balance algorithm of gas-liquid coupling, real-time compensation of pressure fluctuations is achieved within 0.1 seconds of response speed. Even in the face of the complex rheological properties of high viscosity butyl rubber, it can ensure that the colloid is uniformly transported in a laminar flow state in the pipeline, completely eliminating the phenomenon of coating breakpoints or local accumulation caused by sudden pressure changes.

　　值得關注的是，該設備的自動加熱模塊采用了梯度式分區溫控技術，通過嵌入式熱電偶陣列對膠體流動路徑進行多點監測，結合PID模糊邏輯算法動態調整加熱功率，將膠體溫度波動范圍嚴格控制在±0.5℃以內，這一精度不僅顯著提升了膠料活化效率，更避免了傳統恒溫加熱導致的局部過熱碳化風險。在涂膠執行層面，自動打膠系統集成了高分辨率視覺定位裝置與六軸聯動機械臂，通過點云掃描技術對工件表面曲率進行三維建模，使噴嘴軌跡規劃能夠自適應不同幾何形狀的涂布需求，配合每秒2000次脈沖頻率的壓電陶瓷閥實現微升級別的膠量精確計量，最終達成涂膠厚度公差小于±5μm的工藝突破。

　　It is worth noting that the automatic heating module of the device adopts gradient zone temperature control technology, which monitors the colloid flow path at multiple points through an embedded thermocouple array. Combined with PID fuzzy logic algorithm, the heating power is dynamically adjusted to strictly control the colloid temperature fluctuation range within ± 0.5 ℃. This accuracy not only significantly improves the efficiency of colloid activation, but also avoids the risk of local overheating and carbonization caused by traditional constant temperature heating. At the coating execution level, the automatic gluing system integrates a high-resolution visual positioning device and a six axis linkage robotic arm. Through point cloud scanning technology, the surface curvature of the workpiece is 3D modeled, enabling nozzle trajectory planning to adapt to the coating requirements of different geometric shapes. Combined with a piezoelectric ceramic valve with a pulse frequency of 2000 times per second, precise measurement of glue volume at the micro liter level is achieved, ultimately achieving a breakthrough in the coating thickness tolerance of less than ± 5 μ m.

　　為確保生產過程的零缺陷輸出，該設備獨創的無膠報警系統通過多模態傳感融合策略，在膠料余量監測中引入電磁流量計與超聲波探傷雙重驗證機制，當膠體儲量低于預設閾值或輸送管路出現微觀裂紋時，系統不僅會觸發聲光預警，更能通過自學習算法預測斷膠風險點，提前啟動備用供膠通道并同步調整生產節拍，這一主動防御機制使得設備綜合稼動率提升至99.3%以上。而涂膠均勻無斷膠的技術承諾，則源于對非牛頓流體動力學的深度解構——通過開發基于Herschel-Bulkley模型的膠體流變參數自適應補償程序，系統能夠根據環境溫濕度變化動態修正噴嘴剪切速率，使膠層表面張力始終維持在最佳區間，即便在連續48小時高強度作業下，仍可保證膠線邊緣的直線度誤差小于0.1mm/m。

　　To ensure zero defect output in the production process, the unique adhesive free alarm system of the equipment adopts a multimodal sensing fusion strategy and introduces a dual verification mechanism of electromagnetic flowmeter and ultrasonic flaw detection in the monitoring of adhesive residue. When the adhesive storage is below the preset threshold or micro cracks appear in the conveying pipeline, the system not only triggers sound and light warnings, but also predicts the risk point of adhesive breakage through self-learning algorithms, starts the backup adhesive supply channel in advance, and synchronously adjusts the production rhythm. This active defense mechanism increases the comprehensive utilization rate of the equipment to over 99.3%. The technical commitment of uniform and uninterrupted glue coating stems from the deep deconstruction of non Newtonian fluid dynamics - by developing an adaptive compensation program for colloid rheological parameters based on the Herschel Bulkley model, the system can dynamically adjust the nozzle shear rate according to changes in environmental temperature and humidity, so that the surface tension of the glue layer is always maintained in the optimal range. Even under continuous high-intensity operation for 48 hours, the straightness error of the glue line edge can still be guaranteed to be less than 0.1mm/m.

　　從航空航天復合材料的邊緣密封到新能源汽車電池包的氣密涂覆，這款全自動丁基膠涂布機以顛覆性技術矩陣重構了精密涂膠工藝的價值鏈條，其通過數據驅動的智能決策系統將工藝知識轉化為可量化的控制參數，不僅實現了從“經驗依賴”到“模型預測”的范式轉換，更在工業4.0的框架下開辟了柔性制造與零缺陷生產協同演進的新路徑。這種深度融合機械精密工程、智能控制算法與材料科學的創新實踐，標志著中國高端裝備制造業已從功能集成階段邁入系統級自主創新的深水區。

　　From edge sealing of aerospace composite materials to airtight coating of new energy vehicle battery packs, this fully automatic butyl rubber coating machine reconstructs the value chain of precision coating processes with a disruptive technology matrix. Through a data-driven intelligent decision-making system, it transforms process knowledge into quantifiable control parameters, not only achieving a paradigm shift from "experience dependence" to "model prediction", but also opening up a new path for the coordinated evolution of flexible manufacturing and zero defect production within the framework of Industry 4.0. This innovative practice of deep integration of mechanical precision engineering, intelligent control algorithms, and materials science marks the entry of China's high-end equipment manufacturing industry from the functional integration stage into the deep water area of system level independent innovation.
